other name | right ascension (J2000) | declination (J2000) | 5-GHz total flux density | optical ID | redshift |
3C 287.1 | 13 h 32 m 53.271 s * | + 2 ° 0 ´ 45.70 " | 1.5 Jy | galaxy | 0.215 |

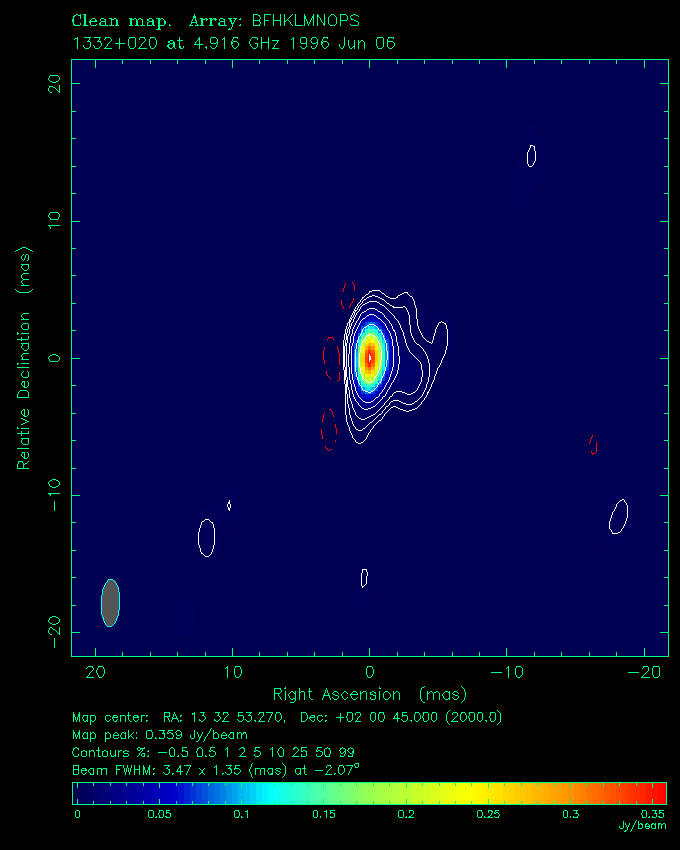

VLBApls image at 5 GHz
color gif
|
contour gif
|
contour PostScript

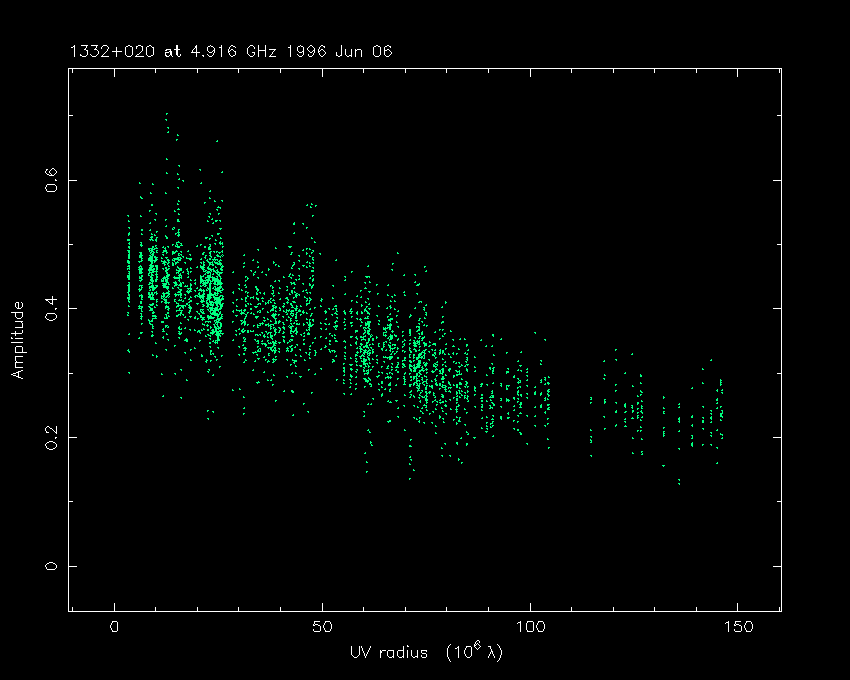

Correlated flux density (Jy) vs. projected baseline length plot
gif |
PostScript
flux density (Jy) | EW position (mas) | NS position (mas) | major axis (mas) | minor axis (mas) | position angle (°) |
0.366 | 0.0 | 0.0 | 0.6 ± 0.2 | < 1.1 | 96 |
0.085 | -1.0 | 0.1 | 2.2 ± 0.4 | < 1.5 | 107 |
0.012 | -4.0 | 0.3 | 3.4 | 2.0 | ... |
A source-specific comment is given in the VLBApls paper.
